Case Study: How FS14-356 SOFT Chain Pushers Reliably Solved Feed Issues on Stitcher Models SP705, SP750, SP855, SP1000, SP1100 – Chicago, IL
Client Overview
A commercial bindery operation in the Chicago area operates a variety of SP705 through SP1100 stitchers for high-speed booklet and catalog production. Faced with rising chain wear and frequent feed misalignment, the client sought a drop-in part replacement compatible across all machines in their mixed fleet.
Introduction

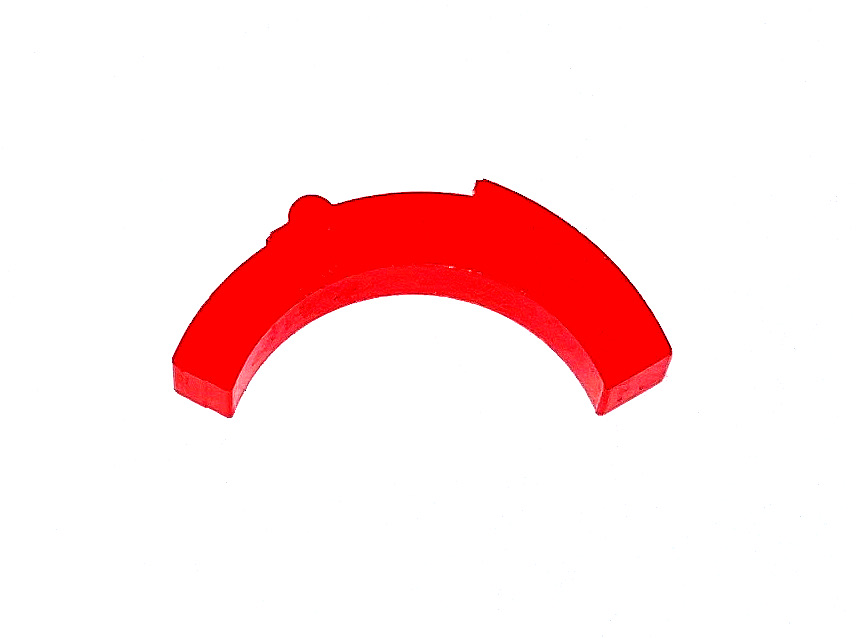

Commercial printing stitchers demand precise chain timing to maintain output flow and quality. M&L Machine Tool’s Part #FS14-356 SOFT Chain Pusher, a reverse-engineered chain pusher molded from industrial-grade polyurethane, was developed for SP-series stitchers to reduce mechanical shock and extend system longevity. Its Shore A70–90 urethane construction offers damping advantages where harder lugs contribute to vibration, timing drift, or premature wear.
Problem Summary
Operations staff noted several recurring issues impacting uptime and print quality:
- Chain slap and lateral misalignment at high speeds
- Frequent re-tensioning required mid-shift
- Accelerated chain elongation in aging units
- Excessive impact noise during pusher retraction
- Required a flexible OEM-grade pusher to reduce drive stress without equipment modifications
Solution Overview FS14-356 SOFT Chain Pusher Benefits
M&L Machine Tool engineered the FS14-356 SOFT Chain Pusher with reverse-engineered tolerances and a thermoset polyurethane body tested for ASTM D-395 compliance. The material resists deformation, vibration, and solvent breakdown while maintaining consistent feed performance in high-cycle environments.
- ✅ Stitcher Models: Drop-in fit for SP705, SP750, SP855, SP1000, SP1100
- ✅ Shore A70–90 urethane dampens vibration and impact stress
- ✅ Maintains <25% compression set after 400,000+ cycles
- ✅ Resists swelling from ink solvents, mineral oils, and press lubricants
- ✅ Molded for stable chain seating with no lateral drift
Implementation Details
Installed during a routine service cycle, the FS14-356 SOFT Chain Pusher required no bracket changes. Technicians note immediate improvements in chain stability. Operators report quieter runs, smoother transitions between cycles, and fewer realignments throughout shifts.
“Thermoset polyurethane commonly tests to ASTM D-395 standards, this part maintains shape under long-cycle compression — ideal for high-speed stitcher use.”
“Why Polyurethane Outperforms Rubber” – Gallagher Corp
Polyurethane materials like this one are often evaluated under ASTM standards to verify compression strength and dimensional stability in industrial settings.
Performance That Holds Its Shape—Cycle After Cycle
Urethane matters—and not all pushers are created equal. The FS14-356 SOFT Chain Pusher holds its shape through over 400,000 compression cycles, outperforming rubber and rigid plastics that flatten, drift, or swell when exposed to solvents and heat.
Its Shore A70–90 balance reduces drive shock and vibration, protecting chains from elongation and maintaining timing accuracy even on legacy machines. Operators stay in control, and production stays on schedule—from cold-morning starts to heat-soaked double shifts.
Results
- ✅ Feed consistency improved during variable-speed operation
- ✅ Fewer operator interventions during high-volume shifts
- ✅ Reduced vibration and system wear in older units
- ✅ Uniform wear pattern across chain contact zones
- ✅ Sustained dimensional integrity even under solvent exposure
Compatibility and Application Use
- ✅ Direct Fit for SP705–SP1100 Stitchers
✅ Cross-Compatible with:- Goss
- Heidelberg
🔄 This reverse-engineered chain pusher allows inventory consolidation across mixed platforms and supports both saddle-stitch and collating workflows. Read more about related components at the M&L Stitcher Parts page
The FS14-356 SOFT Chain Pusher is part of M&L Machine Tool’s broader OEM-grade lineup, reverse-engineered for long-term compatibility with legacy SP705, SP750, SP855, SP1000, SP1100 stitchers. In high-volume print environments where timing drift causes costly delays, this urethane-based solution offers a measurable improvement in uptime. It’s now stocked regionally to support clients in fast-turn production cycles.
Location
- • City: Chicago, IL
• Cross Streets: W. Cermak Rd & S. Halsted St
• Nearby Industrial Landmarks:
– McCormick Place Convention Center
– Union Stockyards Industrial Corridor
• Coordinates: 41.8541, -87.6465
• 📍 2.8 miles south of Printer’s Row in the Central Manufacturing District
• 🌡️ Performs reliably between -80°F and 200°F
• 🧪 Chemical resistant to ink solvents, alcohols, oils
• 🚛 Ships in <48 hours across the Great Lakes region
M&L’s parts are trusted by high-volume production teams who can’t afford downtime. Our fast-turn fulfillment and consistent specs help eliminate delays, misfits, and costly rework.
